Cap
Size | 1/2″~72 “ |
Wall Thickness | 2mm – 50mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Manufacturing Standards
| ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. | |
Materia
| 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
16Mn, ASTM A420 WPL3, A420 WPL6 | |
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV |
Details

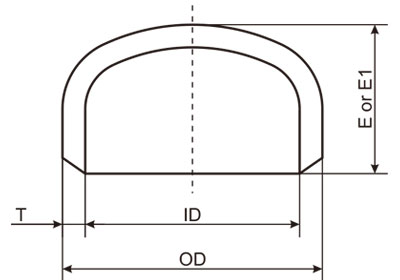

Nominal Pipe Size | Outside diameter at Bevel | Length(2) | Limiting wall Thickness for Length | Length(3) |
1/2 | 21.3 | 25.4 | 4.6 | 25.4 |
3/4 | 26.7 | 25.4 | 3.8 | 25.4 |
1 | 33.4 | 38.1 | 4.6 | 38.1 |
1-1/4 | 42.2 | 38.1 | 4.8 | 38.1 |
1-1/2 | 48.3 | 38.1 | 5.1 | 38.1 |
2 | 60.3 | 38.1 | 5.6 | 44.4 |
2-1/2 | 73.0 | 38.1 | 7.1 | 50.8 |
3 | 88.9 | 50.8 | 7.6 | 63.5 |
3-1/2 | 101.6 | 63.5 | 8.1 | 76.2 |
4 | 114.3 | 63.5 | 8.6 | 76.2 |
5 | 141.3 | 76.2 | 9.7 | 88.9 |
6 | 168.3 | 88.9 | 10.9 | 101.6 |
8 | 219.1 | 101.6 | 12.7 | 127.0 |
10 | 273.1 | 127.0 | 12.7 | 152.4 |
12 | 323.9 | 152.4 | 12.7 | 177.8 |
14 | 355.6 | 165.1 | 12.7 | 190.5 |
16 | 406.4 | 177.8 | 12.7 | 203.2 |
18 | 457.2 | 203.2 | 12.7 | 228.6 |
20 | 508.0 | 228.6 | 12.7 | 254.0 |
22 | 558.8 | 254.0 | 12.7 | 254.0 |
24 | 609.6 | 266.7 | 12.7 | 304.8 |
26 | 660.4 | 266.7 |
|
|
28 | 711.2 | 266.7 |
|
|
30 | 762.0 | 266.7 |
|
|
32 | 812.8 | 266.7 |
|
|
34 | 863.4 | 266.7 |
|
|
36 | 914.4 | 266.7 |
|
|
38 | 965.2 | 304.8 |
|
|
40 | 1016.0 | 304.8 |
|
|
42 | 1066.8 | 304.8 |
|
|
44 | 1117.6 | 342.9 |
|
|
46 | 1168.4 | 342.9 |
|
|
48 | 1219.2 | 342.9 |
|
|
